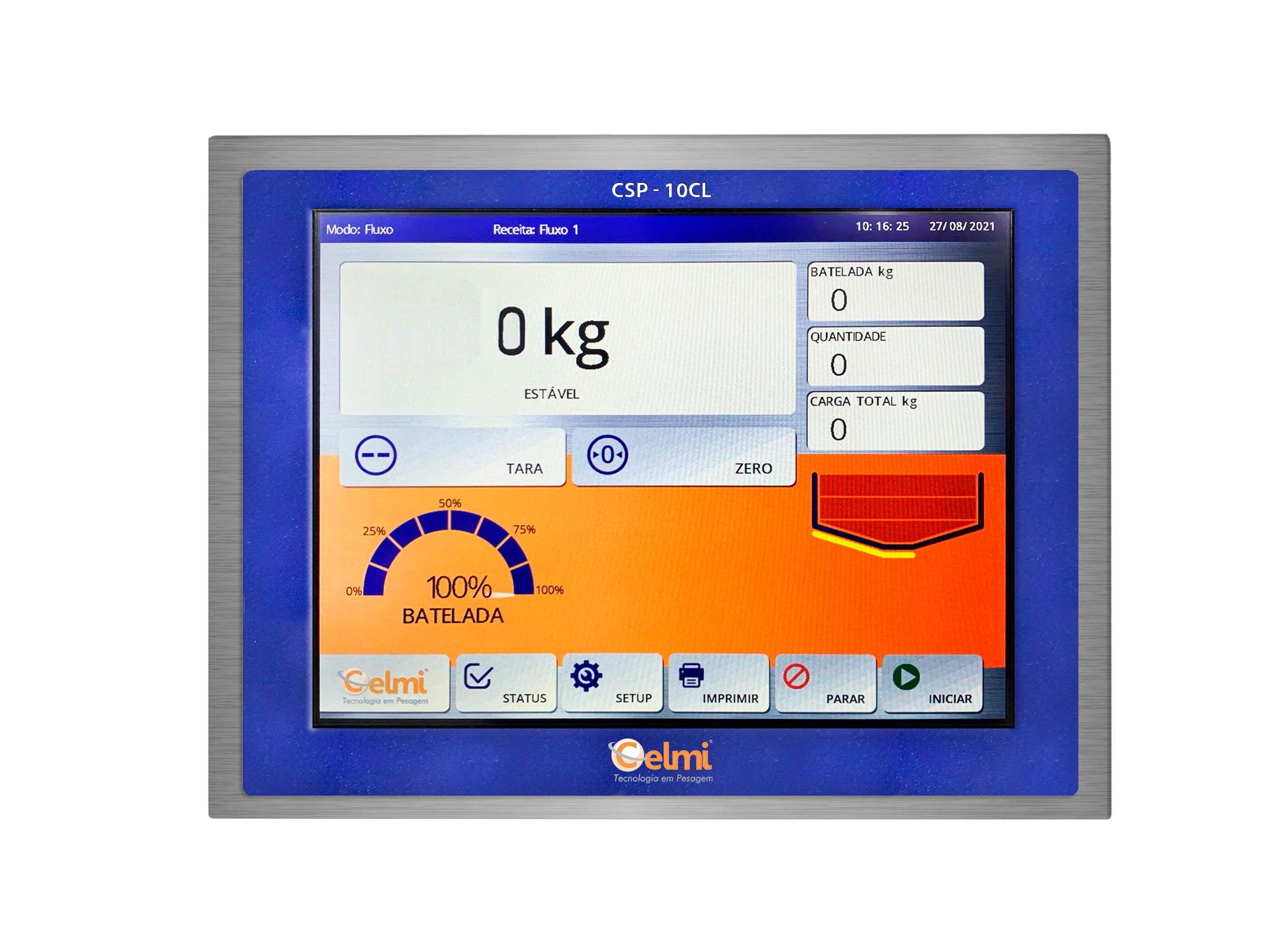

CSP-10CL
The CSP-10CL weighing terminal is an electronic weight indicator specially developed for use in automation systems based on weight.
It can be used for checkweighers, big-bag filling, recipes, flow systems, bagging systems, and other applications that require weight measurement, actuation, and external controls.
-
Approved by INMETRO Ordinance nº 236/1994
-
Enclosure: brushed stainless steel; carbon steel with epoxy paint
-
Power supply: universal AC network from 85V to 264V
-
Touch screen: 7” or 9.7”
-
High-performance load cell interface
-
Supports up to 32 load cells
-
USB communication interface for computer connection
-
RS-232 communication interfaces (x2)
-
RS-485 communication interface
-
Storage of up to four distinct calibrations
-
Internal clock with hour, minute, day, month, and year records
-
Six inputs and outputs for reading and controlling AC loads, allowing use in automation systems
-
Electronic board security key to block unauthorized calibration changes
-
Perforated support for cabinet mounting on various types of surfaces and at different angles
-
Digital software filter with multiple filtering levels to ensure stable weighing results
-
Automatic zero return when equipment is powered on
-
Automatic zero maintenance device to ensure the instrument remains at zero even after several hours of operation
